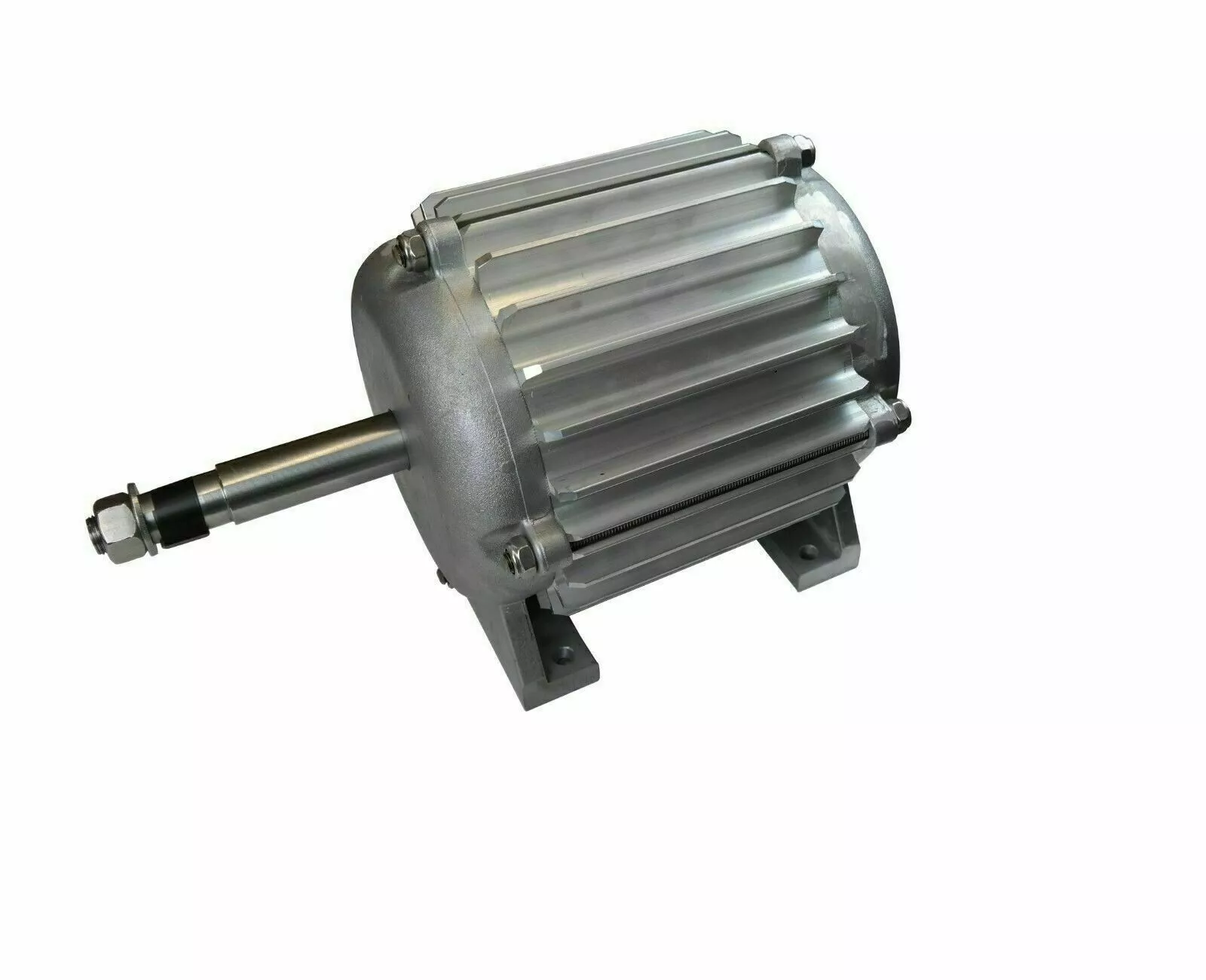

ISTA BREEZE 2Kw 48V GENERATOR
Technical data
GENERATOR DIRECTION Any
EFFICIENCY 92%
GENERATOR 3-phase permanent magnet (High efficiency due to strong permanent magnets (NdFeBo magnets, 150 ° temperature resistant)
Weight 22 kg (The threading of the copper winding is done exclusively by hand.)
MAXIMUM PERFORMANCE 3,2 KW
RATED CAPACITY 2,0 KW
SPEED RANGE 0 rpm- 800 rpm
SWITCHING SPEED / DC 170 U/min (RPM)
SYSTEM VOLTAGE 48 V TYPE
Battery charger WORKSPACE 170 – 600 rpm (LOW RPM WINDTURBINE)
SCOPE OF DELIVERY
GENERATOR 2.0 KW (LOW RPM) 1 pc (22 kg)
